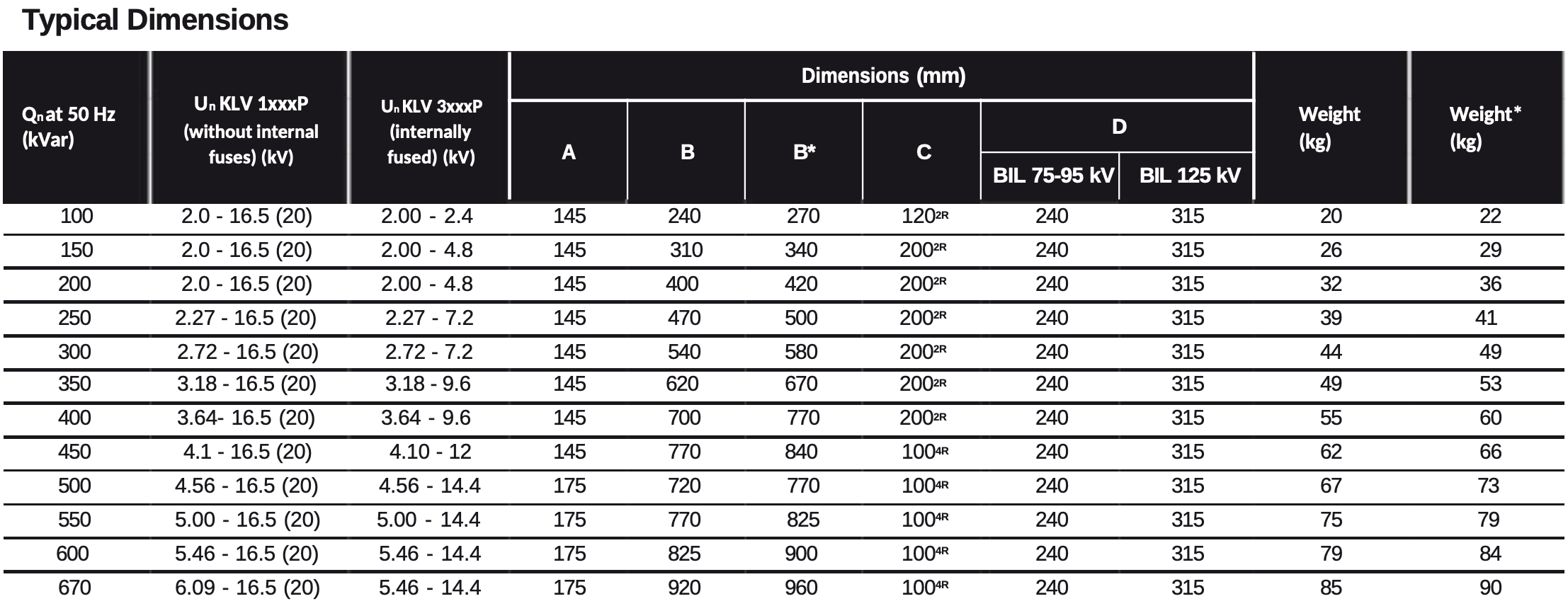

Notes
* Dimensions with an asterisk (*) refer to internally fused capacitors
1) Voltage in parenthesis ( ) refer to one-bushing capacitors only
2) For output and voltage outside this range, please contact factory
3) Case sizes are typical and actual sizes will be confirmed at the time of order
4) Capacitor container could have 2 or 4 brackets (1 or 2 brackets on narrower side)
Dimension C – 2R means 1 bracket from each side (capacitor type KLVxx1x); 4R means 2
brackets on each side, one on the top and one on the bottom, except where the height is
310 mm or below, where brackets are on the bottom only (type KLVxx2x)
5) Dim A may expand up to 115% due to thermal flexure
6) Power at 60 Hz = 1.2 x power at 50 Hz
